AC-DC converter

AC-DC Converter WA25-220XXXH1 Series Typical Features:  Wide Input voltage range, Transfer Efficiency (Typical 87%), Switching frequency: 132KHz typ., Over current / Short circuit /Over temperature protection, Self-recovery, Input-output isolated,  PCB Mounting, Metal case H1.

AC/DC Converter WA3-220SXXA3K Series Typical Features: Wide Input Voltage Range: 85-265Vac, Transfer efficiency (Typical 76%), Switching Frequency: 60KHz(Typ.),  Protections: Over-current, Short-circuit, Over-temperature Self-recovery, Input and Output highly Isolated, PCB Mounting, Metal Case АЗК.

AC/DC Converter UA15-220H05XXXXF2 Typical Features: Wide Input Voltage Range: 85-265VAC/100-380VDC, No-load power consumption≤0. 15 W,  Transfer Efficiency 82% (Typical),  Switching Frequency:65KHz, Protections: short circuit, over current circuit, over temperature, Isolation Voltage:3000 Vac,  Conform to IEC60950/UL60950/EN60950, Meet CE, RoHS standard,  Plastic Case, meet UL94V-0 Class, PCB mounting.

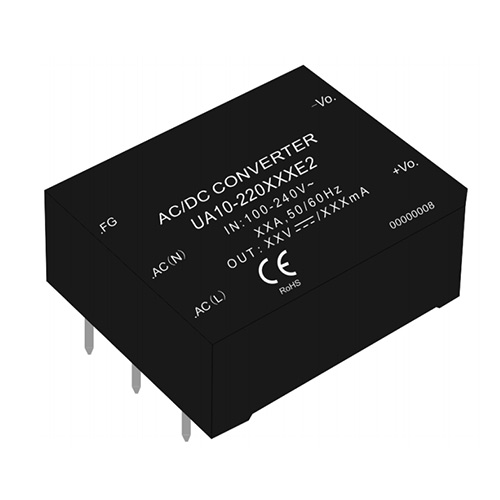

AC/DC Converter UA10-220SXXE2 Series Typical Features: Input Voltage Range: 85-265Vac/120-380Vdc,  Transfer Efficiency: 82% (Typ.),  Switching Frequency:65KHz( typ.),  Over current, Short circuit, Over Temperature Protections, Self-recovery,  Input and Output highly Isolated,  PCB Mounting,  Plastic Case, Meet CE Standard.

AC/DC Converter FA5-220SXXY2 Series Typical Features: Wide Input Voltage Range :85-305VAC/120-430VDC, No load power consumption≤0.1W, Transfer Efficiency: 82% (typ.), Switching Frequency:65KHz,  Protections: Short-circuit, Over-current, Over-voltage, Over-temp, Isolation voltage:4000Vac, Meet IEC60950/UL60950/EN60950 test standard,  Conform to CE, ROHS, Plastic Case, meet UL94 V-O, PCB Mounting.

AC/DC Converter FA40-220SXXH3 Series Typical Features: Wide input voltage range 85~265VAC/120-380VDC, No load power consumption ≤0.3W, Transfer Efficiency 85% (Typical), Switching Frequency: 65KHz, Protections: over current, short circuit, over voltage, over temperature, Isolation Voltage: 3750Vac, Metal Case H3,  PCB Mounting.

AC/DC Converter FA30-220SXXH2 Series Typical Features: Wide input voltage range 85-265VAC/120-380VDC, •No load power consumption ≤0.1W, Transfer efficiency 87% (typical), Switching frequency 65KHz,  Protections: short circuit, over current, over voltage, over temp, Isolation Voltage 4000Vac, Meet IEC60950/UL60950/EN60950 test standard, Conform to CE, ROHS,  Plastic case, meet UL94V-O, PCB Mounting.

AC/DC Converter FA20-220SXXF2 Series Typical Features: Wide input voltage range :85-265VAC/120-380VDC, No-load power consumption ≤0.1W,  Switching Frequency: 65KHz, Protections of over current, short circuit, over temperature, Isolation voltage: 4000Vac, Meet to IEC60950/UL60950/EN60950 testing standard, conform to CE. RoHS approval standards, Fully enclosed plastic case, meet to UL94V-0, PCB mounting.

AC/DC Converter FA15-220SXXF2 Series Typical Features: Wide input voltage range: 85-265VAC/120-380VDC,  No-load power consumption <0. 1W, Transfer efficiency(typ. 87%), Switching frequency:65KHz, Protection: OST,00C,00V,00T, Isolation voltage:4000Vac, Meet IEC60950/UL60950/EN60950, Conform to CE,  ROHS,  Plastic case, conform to UL94 V-O,  PCB mounting.
